VEVOR 5HP SPL Air Compressor Motor 230V 3450RPM 56 Frame CW/CCW Rotation
This page is affiliate-supported. Prices and availability can change after the last marketplace refresh.
About this product

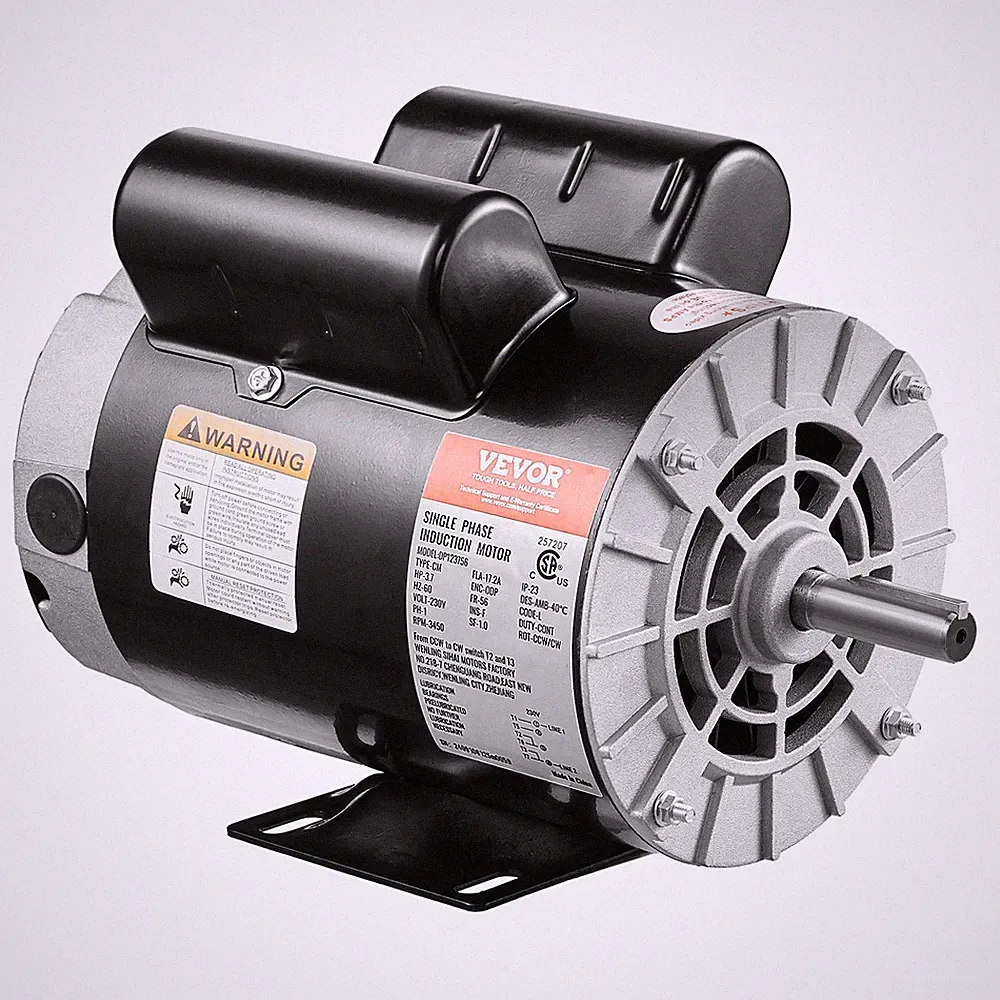

This VEVOR 5HP SPL air compressor motor is designed for heavy-duty applications, operating on 230V power at 60Hz. It features a robust 56 frame size with a 5/8-inch keyed shaft, capable of achieving a rotation speed of 3450 RPM. The motor supports both clockwise (CW) and counter-clockwise (CCW) rotation, offering versatility for different compressor setups. With an ODP (Open Drip-Proof) enclosure, it is suitable for environments where protection from dripping liquids is sufficient. It weighs 34.5 lbs (15.65 Kg).
Our take
For those needing a powerful replacement or upgrade for an air compressor, this VEVOR 5HP motor seems like a solid choice. The 5HP SPL rating indicates substantial power, and the 230V requirement suggests it's built for workshop or industrial-grade compressors, not typical household units. I appreciate the flexibility of CW/CCW rotation, which simplifies installation into various existing compressor systems. The 3450 RPM is standard for compressor motors, ensuring efficient operation. However, the ODP enclosure means it's best suited for drier, indoor environments, so consider your setup before purchasing if dust or moisture are major concerns. The 56 frame and 5/8-inch keyed shaft are common, which should help with compatibility.
Pros & Cons
Pros
- Powerful 5HP SPL rating
- 230V for robust performance
- Reversible CW/CCW rotation
- Standard 56 frame size
- 3450 RPM speed
Cons
- 230V power required
- ODP enclosure not fully sealed
Specifications
- Brand VEVOR
- Item Model Number DP120556S
- Voltage 230V
- Frequency 60HZ
- Current 17.6A
- Rotation Speed 3450rpm
Show all 14 specifications
- SF
- 1.0
- Enclosure
- ODP
- Frame Size
- 56
- Shaft Diameter
- 5/8" Keyed Shaft
- Shaft Length
- 1.88"
- Keyway Size
- 0.188"
- Net Weight
- 34.5 lbs / 15.65 Kg
- UPC
- 197988769729
